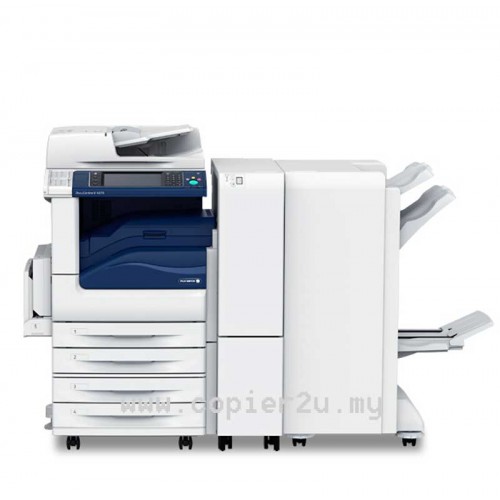

Fuji Xerox Docucentre IV 3070

ApeosPort-IV 5070 / 4070 / 3070, Fuji Xerox Docucentre IV 3070 expands on the technologies of a standard MFD with enhanced scan speed, supported color scan and added ‘green’ features designed for the needs of both the SMB and corporate environments including:

• Top energy-saving performance in its class with lower Typical Electricity Consumption (TEC) by approximately 20 percent compared to former MFDs
• Mono scan speed up to 70ipm (A4 long-edge feed, simplex)
• USB memory slot (Scan to USB printing from USB) can be utilized on UI
• Realizing further energy saving by using light-emitting diodes (LED) as light source for a scanning unit and a liquid crystal control panel

The new ApeosPort-IV 5070 / 4070 / 3070, Fuji Xerox Docucentre IV 3070 series is equipped with the new ‘smart power-saving technology’, which intelligently distributes power to areas for actual utilization when a device recovers from the energy-saving mode.

These new models are also able to attain the optimized control of recovery in two seconds. The technology allows users to reduce power consumption in a way that suits actual use of the machines without compromising convenience, thereby making a significant contribution to overall energy saving at the office as well as reduces start-up sound to keep office noise at its minimum.

Features

Speedy

• High speed scanning of 70ppm in both monochrome and color
• FCOT is 3.2Sec
• 3D-Box Output area where ejected paper can be easily seen

Easy

• 8.5-inch color TFT screen touch panel
• Light feed tray
• Easy Scan to USB to Print
• Simple Copy FAX

Flexibility

• Smart Energy Management Technology
• Supports Finisher A1 / Finisher B1 / Finisher C1
• HCF that enables large volume processing
• Increased output area with Side Tray and Exit 2 Tray

ApeosPort-IV 5070/4070/3070 & DocuCentre-IV 5070 / 4070

Copy Function

Item		Description
		ApeosPort-IV 5070 DocuCentre-IV5070	ApeosPort-IV 4070 DocuCentre-IV4070	ApeosPortIV3070
Type		Console type
Memory*1		CP / CPS: 1.5GB (Max.: 2GB) DC: 1GB (Max.: 2GB)
HDD *2		80 GB (Usable space: 40 GB)
Scanning Resolution		600 x 600dpi
Printing Resolution		600 x 600dpi
Halftone/Printable Colors		256gradation
Warm-up Time		30sec or less (at room temperature 20 degrees C) 12 seconds or less (After exiting low power mode (at 20 C room temperature)
Original Paper Size		Max. 297x432mm (A3, 11×17″) for both sheet original and book original
Output Paper Size	Max.	A3,11 x 17″; [For Bypass Tray, Max.: A3, 11×17″]
	Min.	A5 [For Bypass Tray, Min. :Postcard (100×148 mm), Envelope (235.0×120.5 mm)
	Image loss	Within 4mm for lead edge, Within 4mm for trail edge, Within 4mm for rear/front side
Output Paper Weight *3	Tray	Tray 1: 60 to 105gsm Tray 2 to 4: 60 to 216gsm *3
	Bypass Tray	60 to 216gsm
	HCF	60 to 216gsm
First Copy Output Time (A4 LEF)		BW: 3.1sec (A4 LEF)
Reduction/ Enlargement	Size-to-Size	1:1+/-0.7%
	Preset	1:0.500, 1:0.707, 1:0.816, 1:0.866, 1:1.154, 1:1.225, 1:1.414, 1:2.000
	Variable	1:0.25~1:4.00 (in 1% increments)
Continuous Copy Speed *4	A4LEF/B5LEF	BW: 55ppm	BW: 45ppm	BW: 35ppm
	A4/B5	BW: 33ppm	BW: 32ppm	BW: 27ppm
	B4	BW: 33ppm	BW: 29ppm	BW: 22ppm
	A3	BW: 28ppm	BW: 24 ppm	BW: 19ppm
Paper Tray Capacity *5	Standard	1,095 sheets : (500 sheets (Tray 1) + 500 sheets (Tray 2) + 95 sheets (Tray 5 (Bypass)
	Option	2TM Model: 2,095sheets(500 sheets x 2 Tray+500 sheets x 2 Tray +Bypass 95sheets) TTM Model: 3,095 sheets (500 sheets x 2 Tray+870 sheets x 1Tray +1,130 sheets x 1Tray+Bypass 95sheets) HCF(1T): 2,000 sheets
	Max.	5,095 sheets: [TTM Model+ HCF(1T)]500sheets x 2 Tray + Tandem Tray 2000 sheets ( 870 + 1130 sheets) + HCF 2000sheets + Bypass 95 sheets
Continuous Copy *6		999 copies
Output Tray Capacity *5*7		500 sheets
Power Supply		AC220 -240 V+/-10% / AC 110V+/-10%, 10/15A for both 50/60Hz+/-3%
Power Consumption		Maximum: 2.2 kW (AC 220 V +/-10%) 2.4 kW (AC 240 V +/-10%) 1.65 kW (AC 110 V +/-10%) Sleep Mode: 2.0 W or less (AC 110 V +/-10%) 2.9W or less (AC 220 – 240 V +/-10%) Standby Mode: 140 W or less
Dimensions		W 640 x D 693x H 1,116mm (With Automatic Document Feeder)
Machine weight*8		73 kg (Main body+ Automatic Document Feeder)
Machine space		W 990 x D 1,104mm (With Bypass Tray fully extended, With Tray Drawing)



Print Function

Item		Description
Type		Built-in type
Output Paper Size*1		Same as Copy Function
Continuous Print Speed		Same as the Copy Function
Print Resolution	Output Resolution	1200 x 1200dpi, 600 x 600 dpi
	Data Process Resolution	Standard: 300x300dpi, High Resolution: 600x600dpi, High Quality:1,200×1,200dpi
PDL	Standard	PCL6, PCL5, ESC/P(K), TIFF, HPGL/HPGL2, KS, KSSM, KS5895, XPS, PDF, DocuWorks
	Option	Adobe® PostScript® 3™
Protocol	Ethernet (Standard)	TCP/IP (lpd, IPP, SMB, Port9100, ThinPrint, WSD*2), Novell® NetWare® (IPX/SPX), NetBEUI (SMB), EtherTalk*3
	Parallel (Optional)	Compatible, Nibble, ECP
Operating System*4	Standard	Microsoft® Windows® 2000, Microsoft® Windows® XP, Microsoft® Windows Server® 2003, Microsoft® Windows® XP Professional x64, Microsoft® Windows Server® 2003 x64, Microsoft® Windows Vista®, Microsoft® Windows Vista® x64, Microsoft® Windows Server® 2008, Microsoft® Windows Server® 2008 x64, Microsoft® Windows® 7, Microsoft® Windows® 7 x64, Microsoft® Windows Server® 2008 R2, Mac OS ® x 10.5/10.6
	Adobe® PostScript® 3TM(Optional)	Microsoft® Windows®2000, Microsoft® Windows® XP, Microsoft® Windows Server® 2003, Microsoft® Windows® XP Professional x64, Microsoft® Windows Server® 2003 x64, Microsoft® Windows Vista®, Microsoft® Windows Vista® x64, Microsoft® Windows Server® 2008, Microsoft® Windows Server® 2008 x64, Microsoft® Windows® 7, Microsoft® Windows® 7 x64, Microsoft® Windows Server® 2008 R2, Mac OS® 9.2.2, Mac OS® x 10.3.9 – 10.4.11(except 10.4.7), Mac OS® x 10.5/10.6
Fonts	Standard	European 82 type faces, Symbol 42 sets, (PCL) Chinese font 1 type face (ShuSong), Korean font 6type faces (Myungio, Gothic, Round Gothic, Graphic, Kungso, Saemul)
	Optional	[Adobe® PostScript® 3TM kit]: 136Roman fonts [TC/SC Additional Font ROM Kit]: 4Chinese fonts (ShuSong, KaiTi, HeiTi, FangSong)
Emulation	Standard	ESC/P-K (LQ1900K II), HP-GL (HP7586B), HP-GL2/RTL (HP Design Jet 750C Plus), PCL5/PCL6 (HP Color Laser Jet 5500), KSSM, KS,KS5895
Connectivity	Standard	Ethernet 100BASE-TX/10BASE-T,USB2.0*6 Bidirectional Parallel(IEEE1284-B)*7
	Optional	Ethernet 1000BASE-T*8



Scan Function

Item		Description
Type		Colour Scanner
Original Paper Size		Same as the Copy Function
Scanning Resolution		600 x 600dpi,400 x 400dpi,300 x 300dpi,200 x 200dpi
Scanning Halftone		Each Color of RGB: Input: 10 bits, Output: 8 bits
Scanning Speed *1		BW: 70ipm, Color: 70ipm [Fuji Xerox Standard Document (A4LEF), 200dpi, store to folder]
Connectivity	Standard	Ethernet 100BASE-TX/10BASE-T
	Option	Ethernet 1000BASE-T
Store to Folder (Scan to mailbox)	Protocol	TCP/IP (WebDAV, HTTP)
	File Format	Monochrome binary: TIFF, DocuWorks documents*2, PDF*2, XPS*2 Grayscale: TIFF, JPEG*5, DocuWorks documents*2, PDF*2, XPS*2 Full colour: TIFF, JPEG, DocuWorks*2, PDF*2, XPS*2, High Compression DocuWorks*2,4, High Compression PDF*2,4, High Compression XPS*2,4
	Driver	TWAIN
	Operating System *3	Microsoft® Windows® 2000, Microsoft® Windows® XP, Microsoft® Windows Server® 2003, Microsoft® Windows Server® 2008, Microsoft® Windows Vista®, Microsoft® Windows 7, Microsoft® Windows® XP Professional x64, Microsoft® Windows Server® 2003 x64, Microsoft® Windows Server® 2008 x64, Microsoft® Windows Vista® x64, Microsoft® Windows Server ® 2008 R2, Microsoft® Windows® 7 x64
Scan to PC	Protocol	TCP/IP (SMB,FTP)
	Operating System*3	Microsoft® Windows® 2000, Microsoft® Windows® XP, Microsoft ® Windows Vista®, Microsoft® Windows Server 2003, Microsoft® Windows Server® 2008, Microsoft® Windows® 7, Microsoft® Windows® XP x64, Microsoft ® Windows Vista® x64, Microsoft® Windows Server® 2003 x64, Microsoft® Windows Server® 2008 x64, Microsoft® Windows Server® 2008 R2, Microsoft® Windows® 7 x64, Mac OS X 10.2.x/10.3.8/10.3.9/10.4.2/10.4.4/10.4.8/10.4.9/10.4.10/10.4.11/ 10.5.0/10.5.1/10.5.2/10.5.3/10.5.4/10.6
	File Format	Monochrome binary: TIFF (Compression method: MH, MMR), DocuWorks, PDF, XPS Grayscale / Full colour: TIFF (Compression method: JPEG), JPEG, DocuWorks, PDF, XPS, High Compression DocuWorks*4, High Compression PDF*4, High Compression XPS*4
Scan to e-mail	Protocol	TCP/IP (SMTP)
	File Format	Monochrome binary: TIFF (Compression method: MH, MMR), DocuWorks, PDF, XPS Grayscale / Full colour: TIFF (Compression method: JPEG), JPEG, DocuWorks, PDF, XPS, High Compression DocuWorks*4, High Compression PDF*4, High Compression XPS*4



FAX Function

Item		Description
Send Document Size		Max.: A3, 11×17″, Long document (Max. 600mm)
Recording Paper Size		Max.: A3, 11×17″, Min.: A5
Transmission Time		3 seconds or less*1
Transmission Mode		ITU-T G3
Scanning Resolution	Standard	8 x 3.85 lines/mm, 200 x 100dpi (7.9 x 3.9 dots/mm)
	Fine	8 x 7.70 lines/mm, 200 x 200dpi (7.9 x 7.9 dots/mm)
	Super Fine (400dpi)	16 x 15.4 lines/mm, 400 x 400dpi (15.7 x 15.7 dots/mm)
	Super Fine (600dpi)	600 x 600dpi(23.6 x 23.6 dots/mm)
Coding Method		MH, MR, MMR, JBIG
Transmission Speed		G3: 33.6/31.2/28.8/26.4/24.0/21.6/19.2/16.8/14.4/12.0/9.6/7.2/4.8/2.4kbps
No. of Fax Lines		PBX, PSTN, Max. 3 ports(G3-3port)



Duplex Automatic Document Feeder

Item		Description
		ApeosPort-IV 5070 DocuCentre-IV5070	ApeosPort-IV 4070 DocuCentre-IV4070	ApeosPortIV3070
Type	Duplex Automatic Document Feeder
Original Paper Size /Output Paper Weight	Max.: A3, 11 x 17″, Min.: A5 38 to 128gsm (In Duplex: 50 to 128gsm)
Capacity *1	110 sheets
Feeding Speed(A4LEF) *2		55 ppm	46 ppm	46 ppm
Dimensions / Weight	Width 560 xDepth 492 x Height 105 mm, 7.5 kg
